Contact Us LP Gear ATN3600DLXSE stylus - Upgraded
LPGATN3600DLXSE
● Latest aluminum alloy technology for higher fidelity and natural tone
● Sound quality and performance beyond orignal stylus and substitutes
● Agile, multidimensional, and refreshingly natural crystal clean sound quality
● Special elliptical diamond for excellent tracing accuracy
● Diamond tip r/R radii: 8 x 18 µm (.0003 x .0007 inch)
● LP GEAR® stylus - Above and beyond copies, originals, types, and generics
- Product Info
LP GEAR ATN-3600DLXSE ATN3600DLXSE NEEDLE STYLUS
- Upgraded and replaced by our ALN3600LE stylus for higher tonal fidelity from its aluminum alloy cantilever.
The newly upgraded LP Gear special elliptical stylus for the Audio-Technica ATN3600L and ATN3600 needle stylus series is the ALN3600LE. Researched and developed by LP GEAR, the ALN3600LE harnesses aluminum alloy technology to advance the state of existing Audio-Technica AT3600LC and AT3600LE cartridges and all their myriad versions. The stylus also features a bonded highly polished diamond tip with .0003 x .0007 inch scanning radii.
The ALN3600LE offers agile, multidimensional, and refreshingly crystal clean sound quality that will confound cartridges up to 8 times its price.
ALN3600LE Stylus Details
- Type: Moving Magnet VM Dual Magnet Stereo
- Output voltage @ 1kHz,5cm/sec.: 2.5 mV
- Channel balance at 1kHz: 2.5 dB or less
- Channel separation @ 1kHz: over 18 dB
- Frequency response: 20Hz-20kHz
- Stylus type: 0.3 x 0.7 mil Special Elliptical diamond
- Tracking force range: 1.8 - 4.5 g
- Tracking force recommended: 2.5-3.5 g (25-35 mN)
- Color: LP Gear Indigo
- Recommended break-in duration: 30 hours
For a stylus replacement that offers improved sound quality and performance, refer to the Related Products below.
Resources

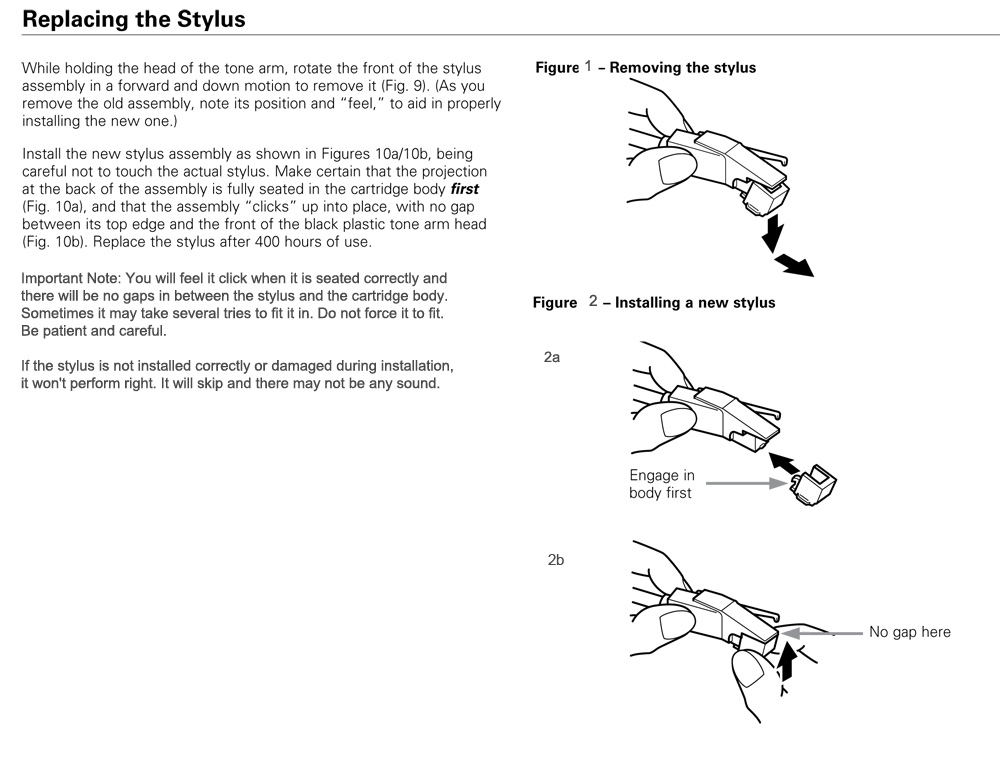

How to replace the stylus (JPG)
