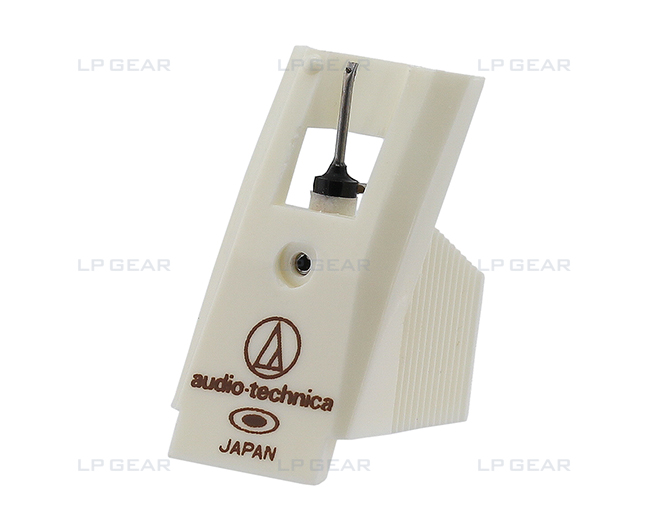

LP Gear ATN3472VL stylus

LP Gear ATN3472VL stylus

ViVid Line Contact diamond stylus for exceptional sound quality
Lifts sound quality (SQ) beyond original production stylus
Diamond tip r/R radii: 6/75 µm (.0002 x .0030 inch)
Custom alloy tube cantilever for firm and sensitive response to grooves
Made by Japanese shokunin crafting each stylus to perfection
LP GEAR® stylus - Above and beyond copies and generics


LP Gear ATN3472VL stylus

Code: ATN3472VL

Alternative Stylus: See Related Products.
Product Info


The LP Gear ATN-3472VL ATN3472VL needle stylus features a highly polished Vivid Line diamond mounted on a thin-wall aluminum alloy cantilever. It offers superior tracing accuracy of record grooves, extended high frequency response and vivid harmonic complexity beyond the capability of regular and special ellipticals. The LP Gear ATN3472VL stylus is suitable and will sound marvelous with phono cartridges that use any of the Audio-Technica ATN3472, ATN3474 and ATN3482 stylus series. The stylus is made in Japan using the most advanced polishing technology and stringent quality control. It is handcrafted by artisans who know how to produce world class replacement styli.

Alternative Stylus and Options
- For options and accessories that enhance sound quality and fidelity, refer to Related Products.

LP Gear ATN3472VL Stylus Technical Detail
- Frequency response: 12Hz-27kHz
- Output voltage @ 1kHz,5cm/sec: 3mV
- Channel balance: 1dB
- Channel separation @ 1kHz/10kHz: 29/19dB
- Stylus type: Highly polished vivid line diamond
- Stylus tip: .0002 x .0029 inch
- Cantilever: Thin-wall aluminum alloy tube
- Tracking force: 1.0-1.5g
- Color: Beige
