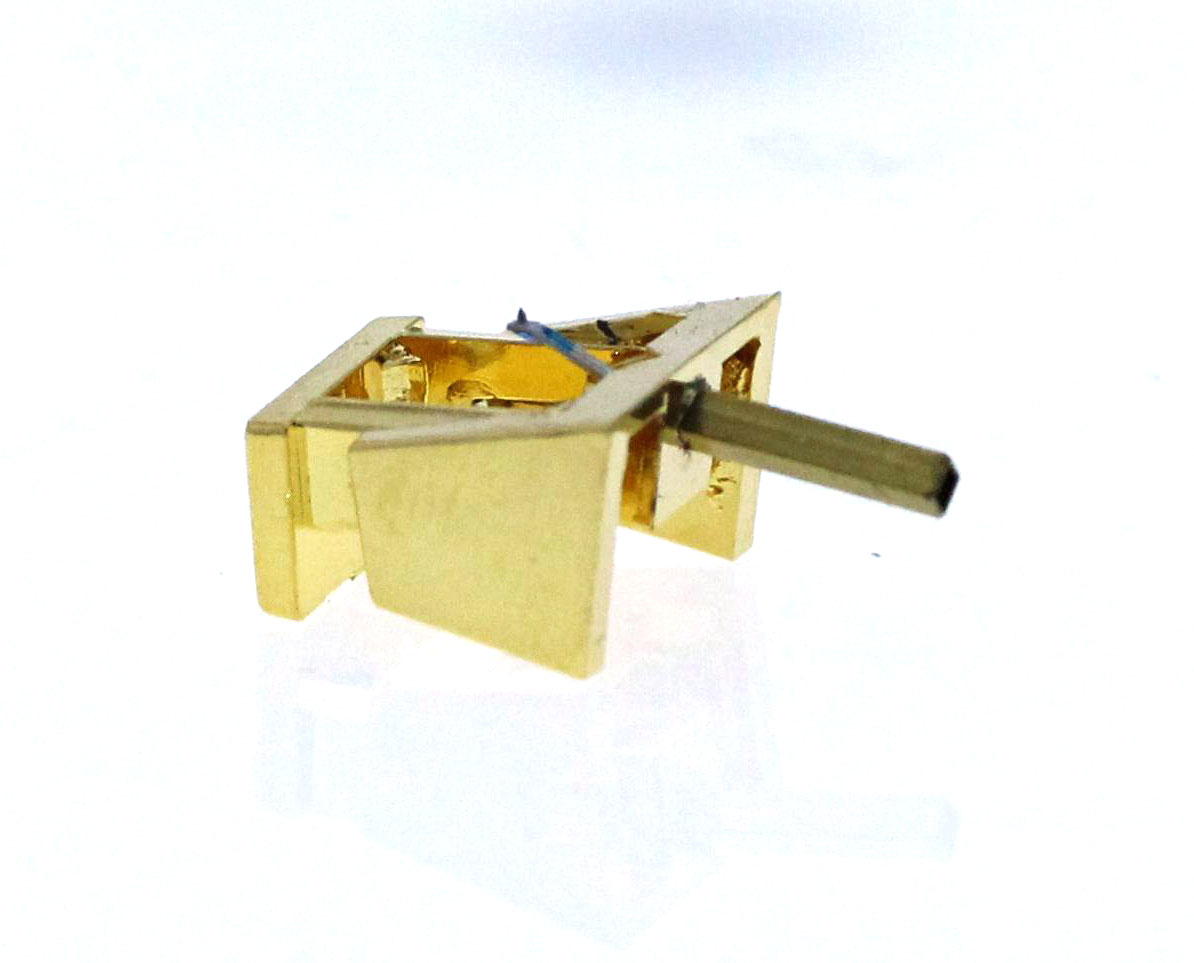

LP Gear replacement for Empire S400LTD stylus

LP Gear replacement for Empire S400LTD stylus

Special production high quality replacement for Empire S400LTD stylus
Made by Japanese shokunin seeking to create perfection with each stylus
Sound quality and performance beyond current production substitutes
Highly polished 0.3 x 0.7 mil titanium bonded elliptical diamond tip
Custom thin-wall alloy cantilever for groove tracing accuracy and fidelity
Each stylus undergoes QC and listening test as final inspection
LP GEAR® stylus - Above and beyond copies and generics


LP Gear replacement for Empire S400LTD stylus

Code: EMS0400LTD

Product Info


The LP Gear replacement for the Empire S400LTD needle stylus features a highly polished special elliptical diamond with a .0003 x .0007 inch radii bonded to a thin-wall metal alloy cantilever. It offers long playing life and excellent tracing of record grooves and results in very fine detail, clarity and harmonically complete sound quality. The color of the stylus varies.

Empire LTD 400 Cartridge Specifications
- Frequency response: 7-33,000 Hz; 20-20,000 Hz ± 2 dB
- Tracking force range: 0.75-2.0 g
- Recommended tracking force: 1.25 g
- Channel separation @ 200Hz, 1kHz, 5kHz: 20, 28, 20 dB
- Stylus size and shape: .2 x .7 mil bi-radial
- Cantilever: Taperd aluminum alloy
- Channel balance: within 1.0 db
- Tracking ability @ at 1kHz: 32 cm/sec
- Compliance: 23 x 10-6 cm/dyne
- Output voltage @ 5cm/sec: 5.0 mV
- Load resistance: 47 kOhm
- Capacitance/channel: 300 pf
- Hum sensitivuty @ 60Hz: 0.5uV/A/m
- Vertiacl tracking angle: 20°
- Stylus replacement and color: S400LTD Purple

Note: Specifications provided for reference to the original product only.
