STYLUS FOR EXCEL ES-70EX ES 70EX ES70EX CARTRIDGE

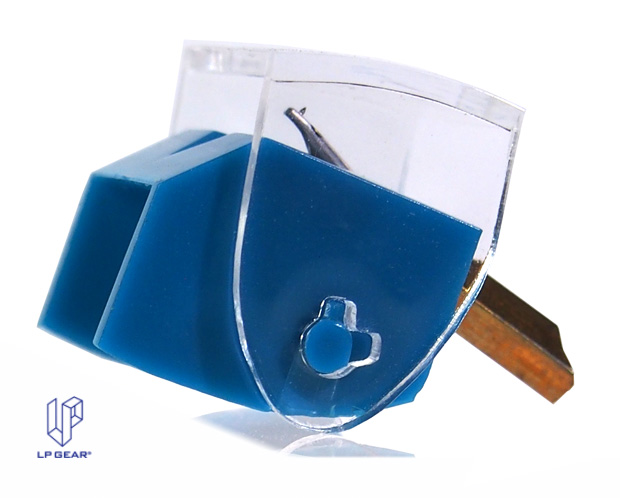

The LP Gear S70EX stylus for the Excel ES-70EX ES70EX phono cartridge features a highly polished and
precision profiled special elliptical diamond with a .0003 x .0007 inch radii. The color of the stylus varies.
The stylus is made in Japan by one of the best stylus replacement manufacturers
in the world and sounds excellent.
- For upgrades and accessories that enhance sound quality and fidelity, refer to Related Products.
Excel ES-70EX Cartridge Specifications
- Type: Moving Magnet
- Frequency range: 10-35,000 Hz
- Output voltage @ 1kHz: 3.0 mV
- Channel balance @ 1kHz: Within 1.0 dB
- Channel separation @ 1kHz: 30 dB
- Dynamic compliance (100Hz): 20 × 10-6 cm/dyne
- Stylus type: Elliptical
- Stylus tip radius: 0.2 × 0.8 mil diamond
- Cantilever: Super-light and rigid straight-tapered
- Tracking force: 0.7 - 2.0 g
- Weight: 5.0 g
- Stylus replacement: S70EX stylus
Note: Original cartridge specification provided for reference only.
