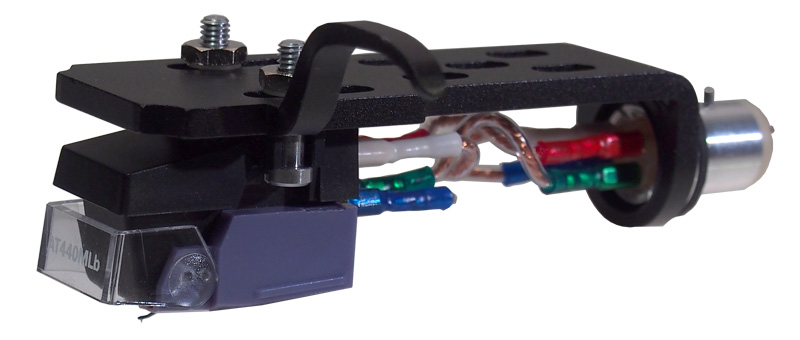

Audio-Technica AT440MLb phono cartridge

ATC05b
$236.88
Audio-Technica AT440MLb phono cartridge
Processing...

Audio-Technica AT440MLb phono cartridge

Code: ATC05b
Retail: $373.00
$236.88

Product Info

AUDIO-TECHNICA AT-440MLB AT 440MLB AT440MLB PHONO CARTRIDGE
- With improvements in stylus damper and contacts

With its improved stylus mechanicals, advanced generator, and Microline stylus, the latest model of this highly regarded and multi-awarded moving magnet cartridge continues to offer top performance with more nuanced detail and clarity.

Audio-Technica AT440MLb Phono Cartridge Specifications
- Output voltage @ 1kHz,5cm/sec.: 4mV
- Channel balance @ 1kHz: 1.0dB
- Channel separation @ 1kHz: 28dB
- Frequency response: 20Hz-25kHz
- Dynamic compliance (x10-6 cm/dyne): 10
- Static compliance (x10-6 cm/dyne): 40
- Stylus type: 0.12 mil nude square micro-linear
- Cantilever: Aluminum tube
- Tracking force range: 1.0 - 1.8 g
- Tracking force recommended: 1.4 g (14 mN)
- Vertical tracking angle: 20°
- Coil impedance @ 1kHz: 3.2k ohm
- Coil inductance @ 1kHz: 490 mH
- Load Capacitance: 100 - 200 pF
- Recommended load resistance: 47k ohms
- Color: Black/Violet
- Weight: 6.5 g
- Dimensions (mm): H17.3 × W16 × D28.2
- Stylus replacement: Audio-Technica ATN440MLb
- Accessories included: Non-magnetic screw driver driver × 1, cartridge mounting screws 5mm × 2,10mm × 2, Washer × 4, nut × 2, hexagonal nut × 2, brush × 1, PCOCC lead set × 1.
